Home Products Laser Gold Cutting Machine
Laser Gold Cutting M
Laser Gold Cutting M
COD not available
Laser Engraving Machine

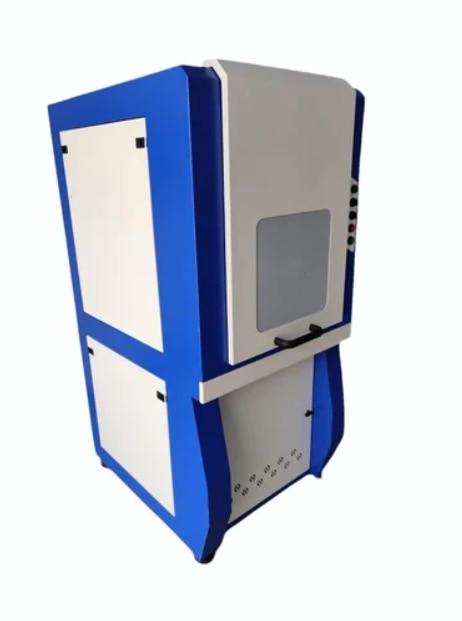

Laser Gold Cutting Machine

Share with
Share this on :

Description

Product details

Laser Gold Cutting Machine Machine Required Jewellery Engraving Machine Power Type Electric Usage/Application Gold & Silver Material Aluminium Power 60W Optional-50W,70W,80W,100W Voltage AC220Voltage-50Hz Frequency 65 Brand Prime Tech Laser Special Capacity Upto 1.5mm Model Name/Number PTL-0084 Automation Grade Automatic Speed 6000mm/s Features Attractive & shine cutting and deep engraving Weight 200KG Temperature Below 40 Engraving Line Speed 6000mm/s I Deal In New Only Country of Origin Made in India With the laser gold cutting machine we can cut gold/silver upto 1.5mm and also possible deep engraving in jewellery ornaments Additional Information: Item Code: PTL-0084 Production Capacity: 20 pieces per hour cutting than depend upon materials and its thickness. Delivery Time: 07 Days Packaging Details: We provide machine with full of wooden box cover so no issue in transportation for damages...

Other Products

Related Products

Hardware Laser Marking Machine Marking Speed Capacity 1000 mm/s Laser Type Fiber Laser Usage/Application Hardware Products Marking Depth 0.08mm Offering Laser Hdpe Pipes, Cables Automation Grade Semi-Automatic Power 0.6kW Voltage 240 V Marking Area 250 X 250 mm(Optional-100X100MM/200X200MM/300X300MM) Laser Wave Length 1064 nm Machine Type Automatic Cooling Mode Air cooled Laser Power 50 W(30 W(Optional-20W/30W/60W/70W/80W/100W/200W) Frequency 50 Hz Weight 165 Kg Cooling System Air cooled Accuracy 50 Central Emission Wave Length 1064MN Laser Cooling Fan cooling Transverse Mode Yes Pulse Repetition Rate 55 Laser Source MAX PHOTONICS(Optional RAYCUS/JPT/IPG/SUPER) Operation Mode Single phase Working Accuracy Upto 250MM Source Pulsed Single pulsed Warranty 24 Month's Place Of Origin India Humidity Relative 55 Wavelength 1064MN Ambient Temperature 40 Beam Expander Upto 0.5MM External Jack Yes Figure Data By USB Fumes Suction NO Maximum Offset Drift Per Axis 750MM Scanning Method Red Light Auxiliary Control System JCZ Controller Adjustable Height Direction(Side) 1500MM Dimensions (L x W x H) 28X30X32 Dimensions L x W x H Enclosure closed 28X30X32 Dimensions L x W x H Enclosure fully opened 28X30X32 CNC or Not No Spot Diameter 0.1MM Pulse Width 40 Pulse Energy Max J 8J Pc Connection Yes Mirrors Yes Maximum Gain Drift Per Axis 550MM Marking Method Laser Marking Item Code PTL-0080 Electrical Yes Axes Types Computerised Average Oscillator Output 50 Available Markers India Ambient Humidity 55 Type Fiber laser Applicable Material Metal/Non-Metal Support Format JPG/PLT/DXF/CDR Size 28X30X32 Pulse Frequency 45 Beam Output 0.2MM Min Character Size 0.1MM Peak Power 50W Output Power 50W Country of Origin Made in India Hardware laser marking machine use for any kind of metal components or metal components branding laser marking,series laser marking. Additional Information: Item Code: PTL-0080 Production Capacity: Depend upon material And its Size Delivery Time: Withing a weeck Packaging Details: Machine will come with full of wooden box cover.
View Details
Hardware Laser Marking Machine
LED Bulb Laser Marking Machine Marking Speed Capacity 8000 mm/s Laser Type Fiber Laser Usage/Application Used For Marking LED Bulb Marking Depth Upto 0.8mm Automation Grade Semi-Automatic Power 0.5kW Voltage 220 V Marking Area Upto 300x300 mm Laser Wave Length 1064 nm Machine Type Desktop Cooling Mode Air Cooled Laser Power 50 W CNC or Not No Specially marking on industrial bearings with upto 300x300mm marking area
View Details
LED Bulb Laser Marking Machine
Fiber Laser Marking Machine Marking Speed Capacity 10000 mm/s Marking Speed 8000 mm/s Usage/Application Industrial Capacity 500 Pieces per hour Laser Type Fiber laser Marking Area 200x200MM Marking Depth 0.02MM Offering Laser Cables Supporting Format PLT Automation Grade Automation Wavelength 1064+ Power 20,30W Voltage 220+ Size 2.5 X 4.5 F Model Name/Number PTL-0024 Color White,Black,Gray Etc... Laser Power 20W & 30W Brand Prime Tech Laser Machine Type Industrial Frequency Range 35 Cooling Mode Air colling Laser Wave Length 0.1MM Maintenance No Maximum Speed 10000MM/S Resolution Depend upon materials Weight 90KG Cooling System Air cooling Temperature Below 35 Accuracy 35 Beam Radiation Angle 0.1MM Beam Quality 0.3MM Laser Cooling Air cooling Laser Repeat Frequency 8000MM/S Ac Power 220+ Laser Source Raycus,Max,JPT,IPG Operation Mode Single phase Ambient Temperature 35 Source Pulsed Raycus,Max,JPT,IPG Warranty 24 Months Place Of Origin India Font Adjustable Marking Characters 0.02MM Marking Software EZCad2.0 in english Maximum Output 1000 Unit per day Scanning Method Fiber laser Auxiliary Control System EZCad 2.0 Dimensions (L x W x H) 40 x 33 x 30 Dimensions L x W x H Enclosure closed 42 x 34 x 32 Dimensions L x W x H Enclosure fully opened 38 x 31 x 28 CNC or Not No Pc Connection YES Marking Method Engraving Item Code PTL-0024 Electrical Yes Display LCD Type Fiber Phase Single Applicable Material Metals An Non-metals Continuous working time 24 Hours Pulse Frequency 50Hz Min Character Size 0.02MM Peak Power 220voltage Output Power 1500W Country of Origin Made in India Support Format PLT , DXF With the help of Fiber laser marking+Engraving machine we marking on all type of metal materials like MS,SS,Aluminium,Brass,silver & gold and also marked+engraving in non-metal but hard like hard plastic,PP,Fiber etc... Additional Information: Item Code: PTL-0024 Production Capacity: Depend upon production maaterials Delivery Time: 7 Days Packaging Details: We provide with hard wooden packaging And safety during transportation.
View Details
Fiber Laser Marking Machine
