Description

Product details

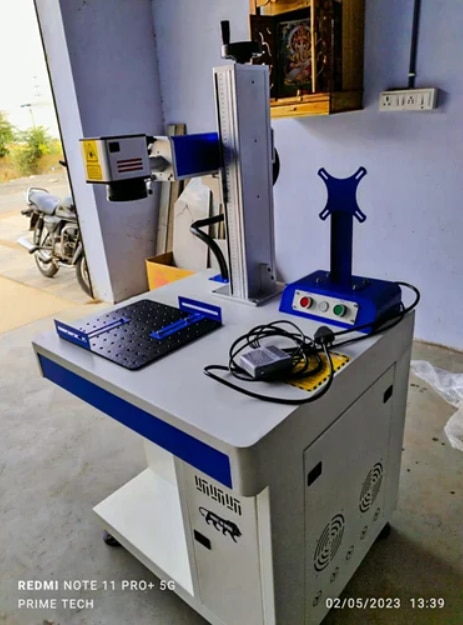

Laser Machine Marking Speed 8000 mm/s Laser Power 30 W Laser Type Fiber Laser Power Source 30W Voltage AC-220 Voltage-50Hz Model Name/Number PTL-0055 Usage/Application Metals & Non-metals Marking Depth 0.5mm Offering Laser Cables Power 30W Frequency 55 Maximum Speed 8000mm/s Additional Module One Yes Marking Area 210X210MM Ambient Humidity Below 35 Laser Wave Length 1064mn Ambient Temperature 35 Machine Type Fiber laser Cooling Mode Air cooling Weight 130KG Body Interface USB Cooling System Air cooling Accuracy 65 Body Power Requirements AC 220V/50Hz Body Weight 130KG-Approx Control Voltage 0-100% Warranty 24 Months Wavelength 1064mn Application Metals Dimensions (L x W x H) 30X30X27 Compatible Software EZCad2.0 Dimensions L x W x H Enclosure closed 32X32X29 Dimensions L x W x H Enclosure fully opened 30X30X27 CNC or Not No Spot Diameter 0.2mm Pulse Width 1064mn Marking Method Laser marking Item Code PTL-0055 Electrical Yes Type Fiber laser Support Format DXF,PLT Min Character Size 0.2mm Country of Origin Made in India With the halp of laser machine we can mark on metal materials and also some hard non-metal products & also deep engraving possible in MS,SS,Al,Brass etc,like de-focus method... Additional Information: Item Code: PTL-0055 Production Capacity: Depend upon materials Delivery Time: 7 Days Packaging Details: We provide machine in transport with full of wooden box cover.
